AIR HAMMER Billet Air Cleaners from HAMMER PERFORMANCE
For 1991-present Sportsters - From $219.95
HAMMER PERFORMANCE is proud to bring you our own line of high performance air cleaners for your Sportster! These air cleaners are
CNC machined in-house out of 6061-T6 billet aluminum. They feature a specially designed radius ring that smooths and straightens
the air flow for the maximum performance possible. All Air Hammer Air Cleaners also feature large K&N cotton gauze
filter elements that minimize restriction, resulting in more power!
Any of the air cleaners in this section will mount up to any 1991-present Sportster, to either the factory CV40 carburetor or the factory EFI throttle body.
They'll actually fit back to 1988 except the support bracket we offer does not have the correct bolt hole sizes for 4-speed heads
(note that 2007-up models do not require the support bracket, the factory support bracket works fine).
AIR HAMMER air cleaners for Sportsters are available in in 3 different sizes, depending on the power level of your motor:
- The IMPACT: with a large 2" tall element, this model delivers plenty of air for your motor all the way up to 100 horsepower. Priced competitively too!
- The CRUSH: using an even bigger 2.25" element that's also longer, the increased surface area of the CRUSH can easily support builds up to 110 horsepower.
- The SLEDGE: the massive 3" element in the SLEDGE supports in excess of 120rwhp!
Each of the three sizes is available with your choice of cover options:
- For use with any 88-present factory cover (88-03 oval ham can or 04-up style cover)
- A "naked" version, which exposes the filter element and uses a machined billet outer plate
Outer plates are also available individually to convert between the covered and naked versions.
Also, each of the three versions is available in any of three configurations:
- Centered, for that symmetrical look
- Forward Offset, for the maximum knee clearance
Application Notes:
- To promote maximum power and minimal carbon build-up, Air Hammer air cleaners require rerouting the factory crankcase breathers. Hardware to accomplish this is available below.
- Air cleaners using a 3" thick element will leave approximately one inch of filter element exposed
- Air Hammer air cleaners for 91-06 Sportsters require a carb mounting bracket as the air cleaner does not provide this function. These brackets are also available below.
IMPACT Air Hammer Air Cleaners for Sportsters
Perfect for Bikes Ranging from Stock to 105 Horsepower
Use Your Factory Cover or an Optional billet Outer Plate
Centered for a Symmetrical Look or Forward Offset for More Knee Clearance
Top Quality - Superb Performance - Low Price!
|

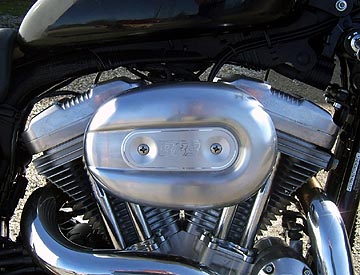

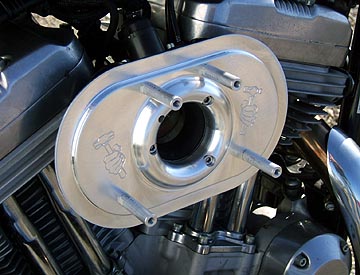

IMPACT Centered - Only $219.95
The IMPACT Centered gives a symmetrical look
Use your stock 88-present cover, one of our special carbon fiber covers, or naked with a billet outer plate
|

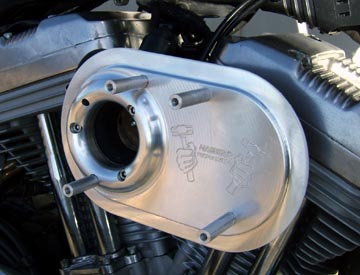

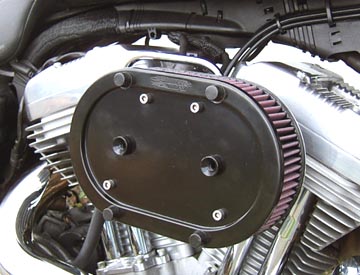

IMPACT Offset - Only $219.95

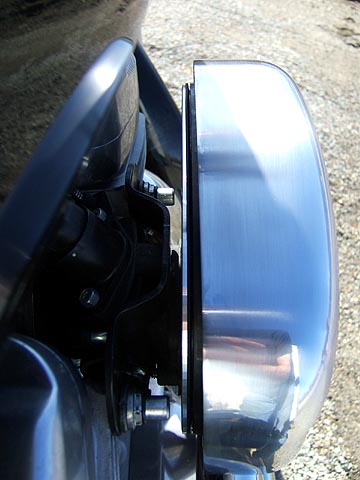

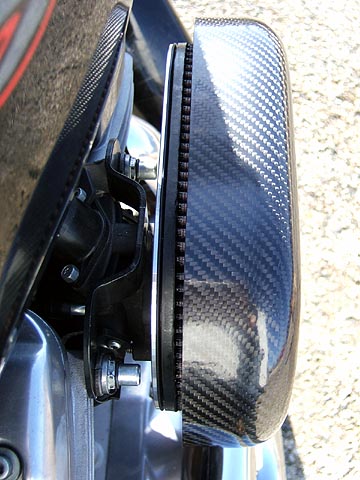

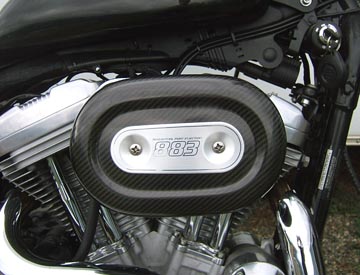

The IMPACT Offset gives extra knee clearance
Use your stock 88-present cover, one of our special carbon fiber covers as shown, or our machined billet outer plate to run naked
|
|
When used with a 2004-up style cover, the IMPACT models
just barely cover the filter element
|
When used with an 88-03 oval ham can type cover,
the IMPACT models leave
a small strip of the element exposed.
|
Engraved Billet Outer Plate

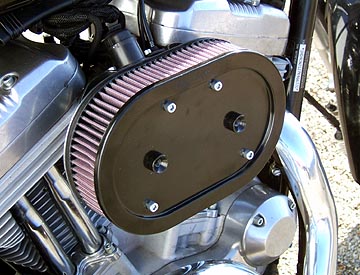

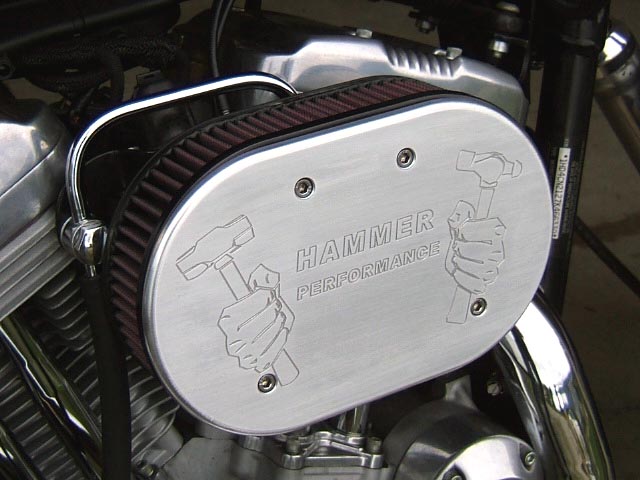

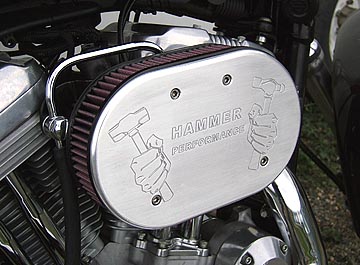

Go Naked with one of our Machined Billet Outer Plates
on your IMPACT Air Hammer
Standard Engraving Shown
|

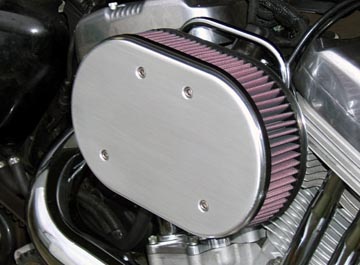

Plain Billet Outer Plate
Plain version shown (no engraving)
|
Click Here for IMPACT Air Cleaner Installation Instructions
|
| IMPACT Air Hammer Air Cleaners for Sportsters |
IMPACT Air Hammer Air Cleaner
With filter element & mounting screws
OEM style cover bolts directly to this filter
or use machined billet outer plate below |
|
Machined Billet Outer Plate
for IMPACT Air Cleaners
Use instead of an OEM style cover
for the "naked" look
IMPORTANT! These are for use with Air Hammer
air cleaners ONLY
No warranty if used with any other air cleaner |
|
|
CRUSH Air Hammer Air Cleaners for Sportsters
For Serious Power Builds up to 110 Horsepower!
The CRUSH Element is 1/2" Longer and 1/4" Thicker than the IMPACT Element
More Flow While Still Maintaining Good Knee Clearance and Looks
Cover Mounting is Not Integrated into the Element as with the IMPACT Air Hammer
A Separate Outer Plate is Included in Your Choice of Cover Mount Style or Naked Style
Offered Centered for a Symmetrical Look or Forward Offset for More Knee Clearance
|

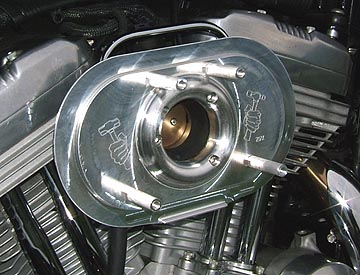

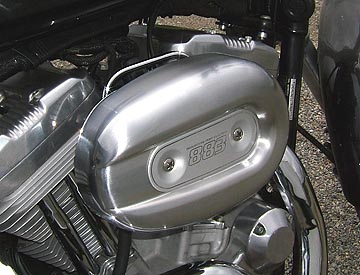

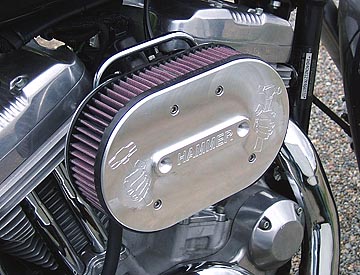

CRUSH Centered - Only $279.95
This outer plate is designed for use with a cover
The CRUSH Centered gives a symmetrical look
Use your stock 88-present cover, one of our special carbon fiber covers, or naked with a billet outer plate
|

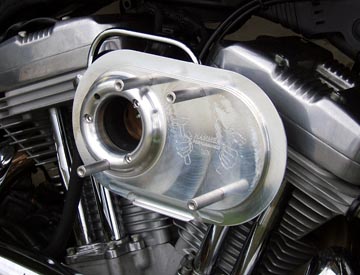

CRUSH Offset - Only $279.95
This outer plate is designed to run naked

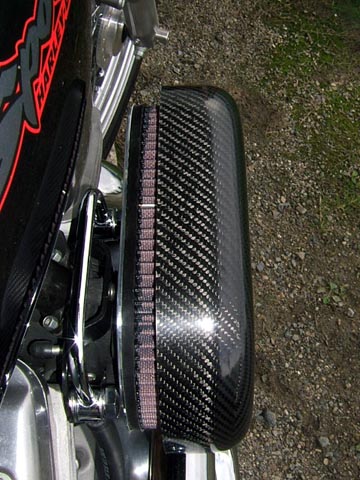

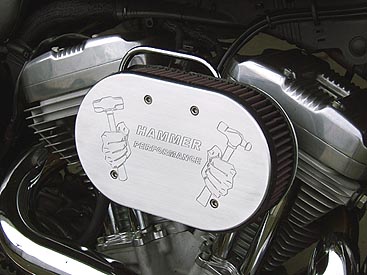

The CRUSH Offset gives extra knee clearance
Use your stock 88-present cover, one of our special carbon fiber covers as shown, or our machined billet outer plate to run naked
|
|

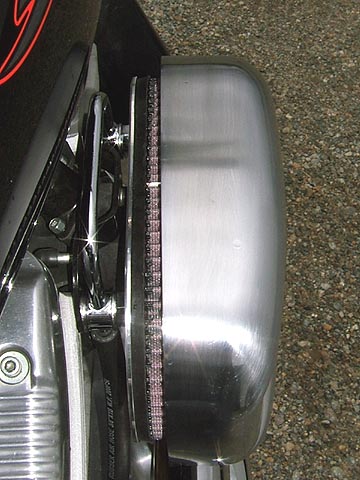

When used with a 2004-up style cover, the CRUSH models
leave about a quarter inch of the element exposed.
|
When used with an 88-03 oval ham can type cover,
the CRUSH models leave a slightly larger strip
of the filter element exposed.
|
Click Here for CRUSH Air Cleaner Installation Instructions
|
| CRUSH Air Hammer Air Cleaners for Sportsters |
CRUSH Air Hammer Air Cleaner
With billet plates, filter element & mounting screws
|
|
Additional Machined Billet Outer Plate
for CRUSH Air Cleaners
Get an extra billet outer plate to
convert your CRUSH air cleaner
from a cover to naked or vice-versa |
|
|
SLEDGE Air Hammer Air Cleaners for Sportsters
For All-Out Power Builds to 120 Horsepower and Beyond!
The SLEDGE Element is a Massive 3 Inches Thick for Maximum Air Flow
Great for Big Inch Motors or REALLY Hot 1250's
Identical to the CRUSH Air Hammer Except the Element is 3/4 of an Inch Thicker
Your Choice of Outer Plates to Mount an OEM Type Cover or Go Naked
Offered Centered for a Symmetrical Look or Forward Offset for More Knee Clearance
|

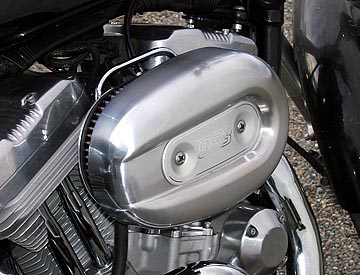

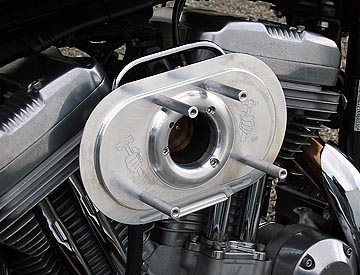

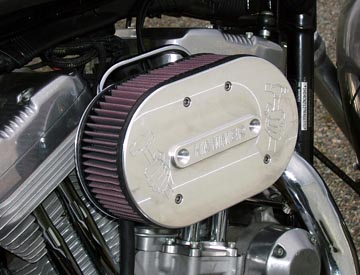

SLEDGE Centered - Only $319.95
This outer plate is designed for use with a cover
The SLEDGE Centered gives a symmetrical look
Use your stock 88-present cover, one of our special carbon fiber covers, or naked with a billet outer plate
|

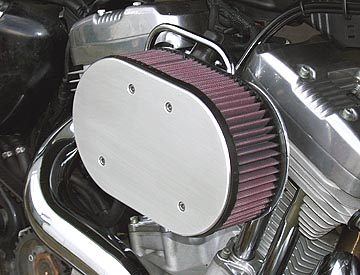

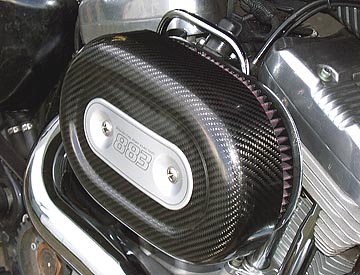

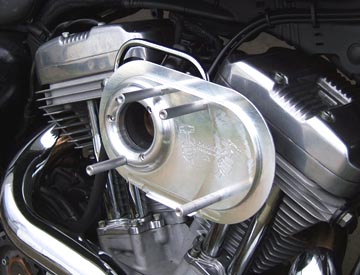

SLEDGE Offset - Only $319.95
This outer plate is designed to run naked

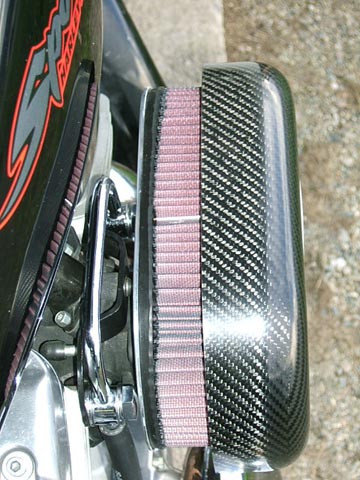

The SLEDGE Offset gives extra knee clearance
Use your stock 88-present cover, one of our special carbon fiber covers as shown, or our machined billet outer plate to run naked
|
|

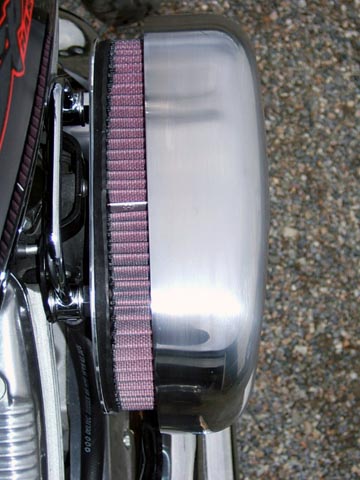

When used with a 2004-up style cover, the SLEDGE models
leave about an inch of the element exposed.
|
When used with an 88-03 oval ham can type cover,
the SLEDGE models leave just over an inch
of the filter element exposed.
|
Click Here for SLEDGE Air Cleaner Installation Instructions
|
| SLEDGE Air Hammer Air Cleaners for Sportsters |
SLEDGE Air Hammer Air Cleaner
With billet plates, filter element & mounting screws |
|
Additional Machined Billet Outer Plate
for SLEDGE Air Cleaners
Get an extra billet outer plate to
convert your SLEDGE air cleaner
from a cover to naked or vice-versa |
|
|
Accessories for AIR HAMMER Sportster Air Cleaners
|
|

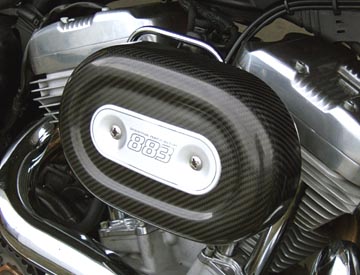

For great looks and the ultimate in light weight,
pair your covered version Air Hammer
with a Carbon Fiber Cover.
|
|
|
The horseshoe breather kit is a clean, low cost way to route the nasty blow by out of your intake tract
|
Carb support brackets are offered in chrome or black. We've found the black brackets to be more durable.
|
| Accessories for AIR HAMMER Sportster Air Cleaners |

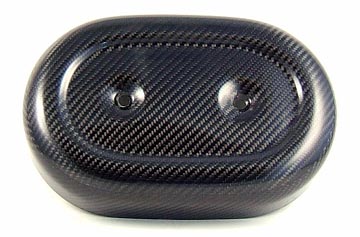

Carbon Fiber Ham Can Cover - $159.95
Temporarily out of stock
We will enable ordering when available again
|
|
Complete Installation Kit - $73.95
Includes chrome carb mount bracket,
Banjo bolts and fittings,
Hose, and breather filter |
|

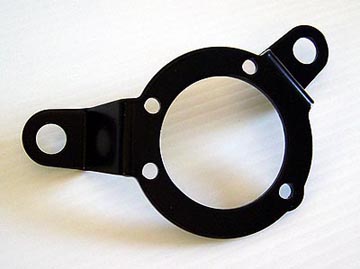

Carb Mounting Bracket (Black) - $23.95
Required for mounting Air Hammer air cleaners onto 91-06 Sportster |
|

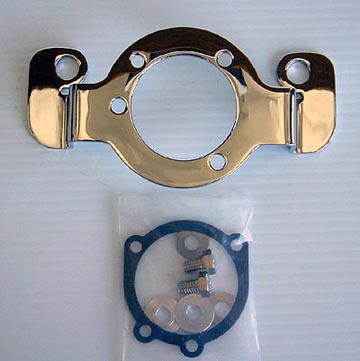

Carb Mounting Bracket (Chrome) - $24.95
Chrome version of the above
The black one has proven more durable however |
|

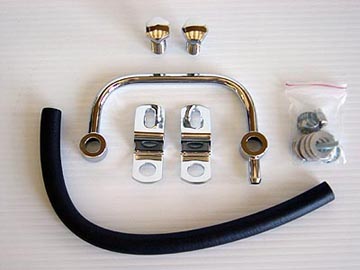

Horseshoe Type Breather Kit (Chrome) - $44.95
Includes breather bolts
3/8" hose required |
|
Banjo Bolts and Fittings - $43.95
For use with 3/8" hose
1/2-NC13 thread for all Evolution |
|
Mini Breather Filter - $17.95
Has a 3/8" hose barb inlet & 1/4" mounting ring
Mount it or let it hang
Washable |
|
|
AIR HAMMER Billet Air Cleaners from HAMMER PERFORMANCE
For 1995-2002 Buells - From $219.95
Ever since the factory discontinued the Pro-Series air cleaner, Buell riders have been searching for a suitable replacement.
Well, search no more, HAMMER PERFORMANCE has the answer! Our AIR HAMMER Billet Air Cleaners for 95-02 Buell models represent
a nice improvement on the Pro-Series, featuring our exclusive billet aluminum backplate with integral radius ring and offset spacer.
What's more, unlike the old Pro-Series, our air cleaners use a centered style bolt pattern on the carbon fiber cover, allowing
you to choose from the many available insert plates.
AIR HAMMER air cleaners for Buells are available in in 3 different versions:
- A Carbon Fiber oval ham can cover version with a massive 3" element, for S1/S3/X1/M2 models through 2002. This model is available in either a level version or
clocked slightly downward to match the Buell frame rails and tank.
- An S2 version with a 2" element for use with either the stock carbon fiber S2 ham can cover or one of our replacement versions.
- A "naked" version, which uses an exposed 3" element and a billet aluminum outer plate.
All AIR HAMMER air cleaners feature washable/reusable K&N air filter elements.
Application Notes:
To promote maximum power and minimal carbon build-up, Air Hammer air cleaners require rerouting the factory crankcase breathers. Hardware to accomplish this is available below. Air cleaners using a 3" thick element will leave approximately one inch of filter element exposed Clocked models are not recommended for use with the Buell Pro-Series race header on 1996-1998 models as they've have been known to contact the header
Carbon Fiber Buell Air Hammer
For Buell S1/S3/M2/X1 models
This air cleaner uses a massive 3" thick filter element for maximum flow.
Includes lightweight carbon fiber cover.
Forward offset for maximum knee clearance.
Centered type cover bolt pattern to allow the use of standard inserts and promote better sealing.
|
Level Style
The level style should be used where clearance to the exhaust header is a concern.
|
Clocked Style
Note: The clocked style angles the air cleaner downward to match the frame tube and tank.
|
|
Note: The trim plate inserts as shown are not included
Air Hammer Billet Air Cleaner for Buell M2/S1/S3/X1
With carbon fiber cover,
3" Thick filter element, mounting screws
The carbon fiber covers are temporarily out of stock
We will enable ordering when available again
|
|
|

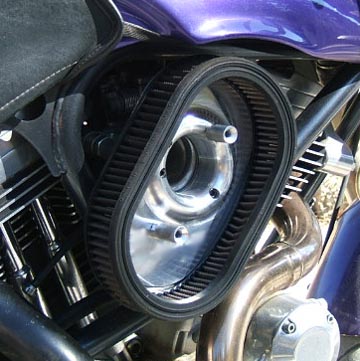

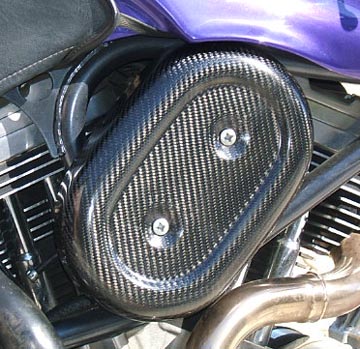

S2 Buell Air Hammer
|
|
Billet backplate with integral radius ring and spacer for maximum flow
Includes a new 2" thick filter element - 23% more surface area than stock!
|
Uses your factory original carbon fiber cover or lose the green and buy a NEW cover as shown above
|
Air Hammer Billet Air Cleaner for Buell S2 - $219.95
With 2" thick filter element, mounting screws
Uses your stock cover
or order a replacement cover below |
|
|

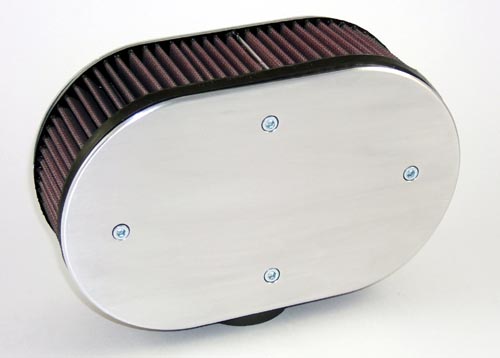

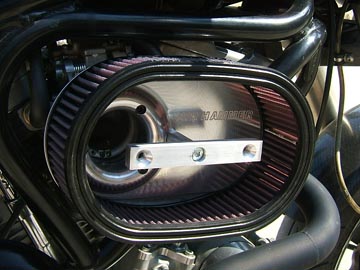

Naked Buell Air Hammer
For Buell S1/S3/M2/X1 models
This air cleaner uses a massive 3" thick filter element for maximum flow
Includes lightweight billet aluminum outer cover
Forward offset for maximum knee clearance
Recessed screw heads for a clean look
Available with standard Hammer Hands engraving or Plain (as shown)
Also available level or clocked downward to match the frame tubes.
|

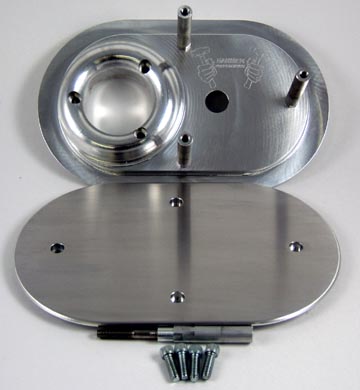

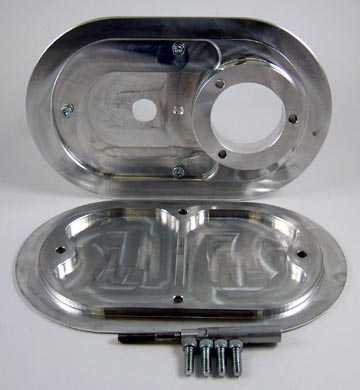

Inside View
This version also uses our large radius ring for maximum flow
Shown is the DDFI version with provision for air temp sensor
|
Back View
The back side of both plates are pocketed to reduce weight
|
Air Hammer Naked Billet Air Cleaner for Buell M2/S1/S3/X1
With billet aluminum outer plate,
3" Thick filter element, mounting screws |
|
|
| Accessories for Buell Air Hammer Air Cleaners |
| Carbon Fiber Covers |
Carbon Fiber Ham Can Cover - $159.95
Included in M2/S1/S3/X1 air cleaners above
Optional replacement for the factory S2 cover
(looks much better than the green)
On-center bolt pattern
Temporarily out of stock
We will enable ordering when available again
|
| Breather Kits and Accessories |
Horseshoe Type Breather Kit (Chrome) - $44.95
Includes breather bolts
3/8" hose required |
|
Banjo Bolts and Fittings - $43.95
For use with 3/8" hose
1/2-NC13 thread for all Evolution |
|
|
Air Hammer Air Cleaners for Buell models can also be made on a special order basis in the Buell Pro-Series style, with the cover screws in an offset location. Please call.
|
