LUBRICATION
For Sportster & Buell
|
Quick Links:
|

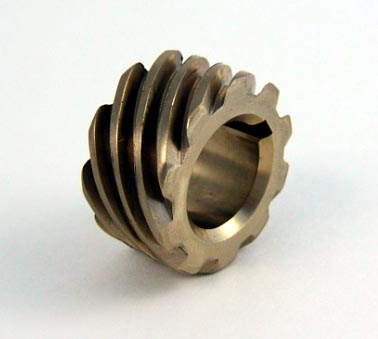

Bronze Oil Pump Drive Gears - Only $128.16
Sportster and Buell engines are notorious for wearing the oil pump drive gear on the pinion shaft. Pinion shaft runout causes this. HAMMER PERFORMANCE has the
solution, though, a bronze oil pump drive gear that greatly reduces wear in this critical area. Check your stock drive gear; if the teeth are getting sharp on one side,
it's time to get one of these. If you're into the cam box anyway for a cam change, it's cheap insurance.
Note: a pinion gear locking tool is absolutely required to safely change this gear, i.e. without the risk of scissoring your crank.
Bronze Oil Pump Drive Gear - $128.16
Fits 1988-Present Sportster and Buell |
|
|

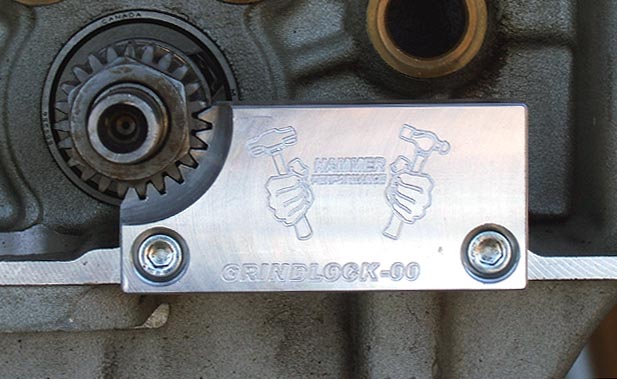

Pinion Gear Locking Tools
OK, so it's not directly related to lubrication, but if you're changing the oil pump drive gear as described above, you need this tool!
If you hold the crank still from the other side of the assembly - the primary side, or by putting the bike in gear and holding the brake - you apply twisting force through the crank pin,
and the crank pin is not designed to resist much twisting force. You run the very real risk of knocking the crank out of true, which requires a full tear-down to fix.
Don't take the risk, get yourself one of our exclusive Grindlock pinion locking tools. We work on these bikes all the time, and frankly the other offerings
on the market for this function frustrated us with weak teeth that liked to push away from the pinion gear. The Grindlock design solves that problem. It also engages for the
full depth of the pinion gear for maximum strength.
Click Here for Instructions on Using this Tool. It's not always obvious exactly how it goes onto the gear and some people mistakenly assume we
sent them the wrong tool or it's somehow defective. The instructions clear this up.
GrindLock Pinion Locking Tool for XL models
Also works on 1991-2002 Buell models except Blast |
|
|

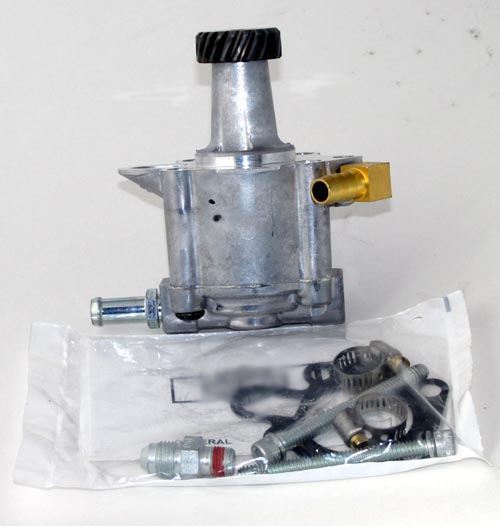

Oil Pump
HAMMER PERFORMANCE has available the latest 2007+ style oil pumps for XL's and Buells. These pumps feature the largest scavenge sections ever offered
in XL oil pumps to help combat wet sumping. The pressure section is smaller than previous designs, however, more efficient porting and gerotor designs created no loss of pressure side capaciity.
OEM type oil pump
2007+ high scavenge capacity style
$299.99 |
|
|

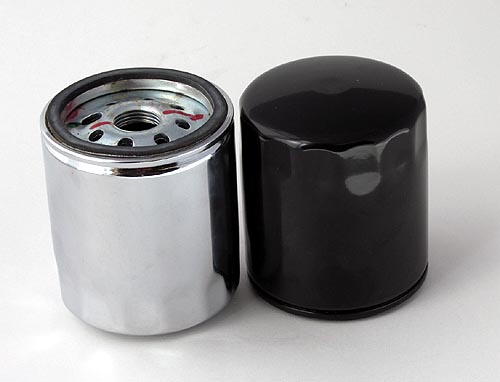

Oil and Filters
HAMMER PERFORMANCE has oil and filters available at competitive prices.
|
|

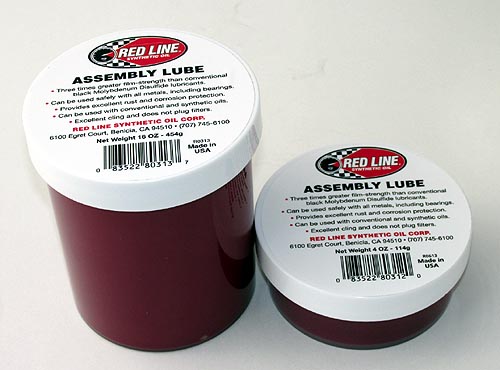

Assembly Lube
HAMMER PERFORMANCE has Red Line Assembly Lube in two sizes, 4oz and 16oz.
|
|
|
